SHK E635-MK2

Beskrivelse

Specifikation

Passive mid/high column with 6 x 3.25" drivers and phase plug waveguides for even 90° coverage. Part of the modular HK Audio ELEMENTS MK2 system.

Concept and configurations

• Modular column system comprising ELEMENTS MK2 635 mid/high columns, an ELEMENTS MK2 SPACER spacer and 110 Sub A or 115 Sub A active subwoofers
• Dispersion principle: modular line array
• Scalability: up to 3 mid/high modules and 2 subwoofers depending on the configuration
• Automatic detection of the number of mid/high modules with automatic DSP midrange compensation
• System compatibility: HK Audio LINEAR 5 MK2 and LINEAR 9
• Can be expanded with the LINEAR 5 MK2 115 Sub A subwoofer, particularly for cardioid configurations
• SMART BASE configuration: 2 x ELEMENTS MK2 635, 1 x ELEMENTS MK2 SPACER, 1 x ELEMENTS MK2 110 Sub A
• BIG BASE configuration: 2 x ELEMENTS MK2 635, 1 x ELEMENTS MK2 SPACER, 1 x ELEMENTS MK2 115 Sub A

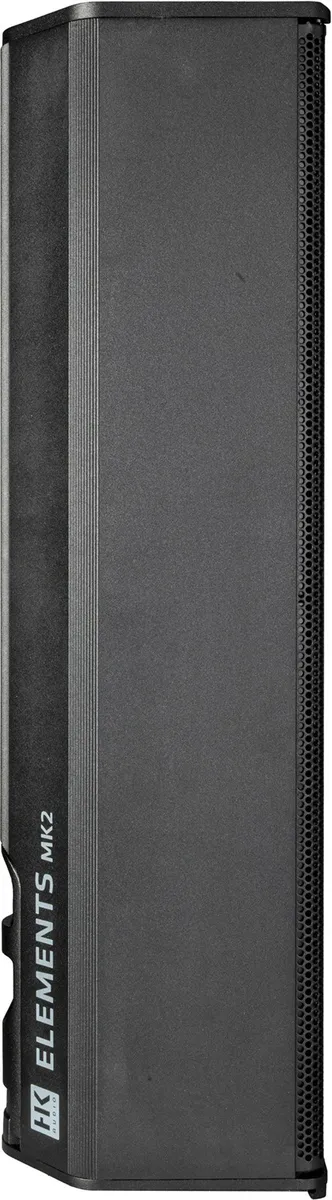

ELEMENTS MK2 635 mid/high column

• Type: passive full-range column loudspeaker
• Enclosure principle: sealed enclosure

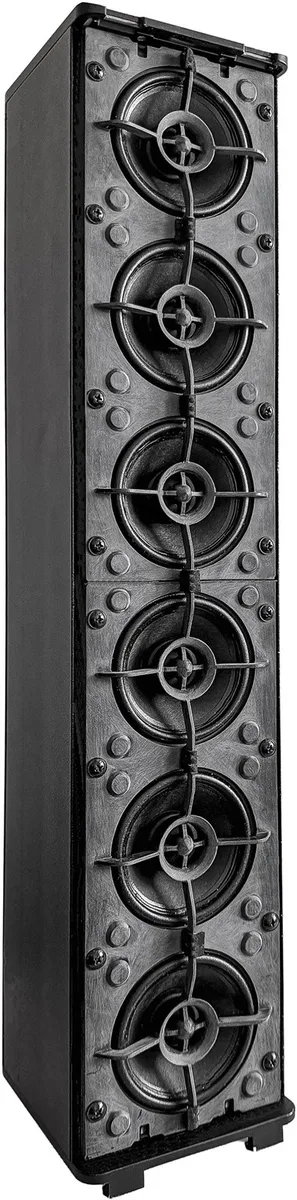

• Mid/high loudspeakers: 6 x 3.25 inches
• Waveguide: 6 x phase plugs
• Peak power handling: 250 W
• Nominal impedance: 12 Ohm
• Maximum peak SPL: 132 dB
• Crossover frequency: 175 Hz
• Frequency response at -6 dB: 170 Hz to 18 kHz
• Frequency response at -10 dB: 145 Hz to 20 kHz
• Dispersion at -9 dB: 90 degrees horizontal x 5 degrees vertical

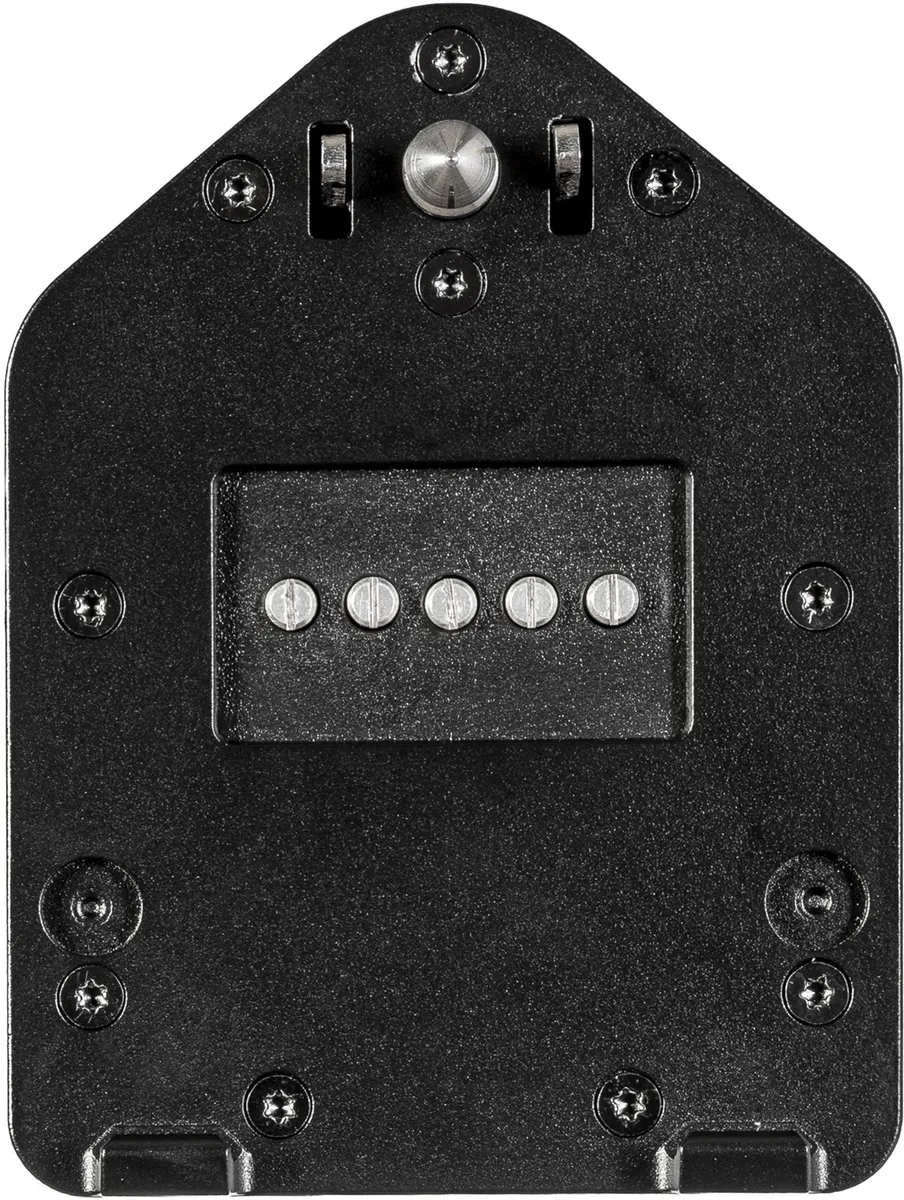

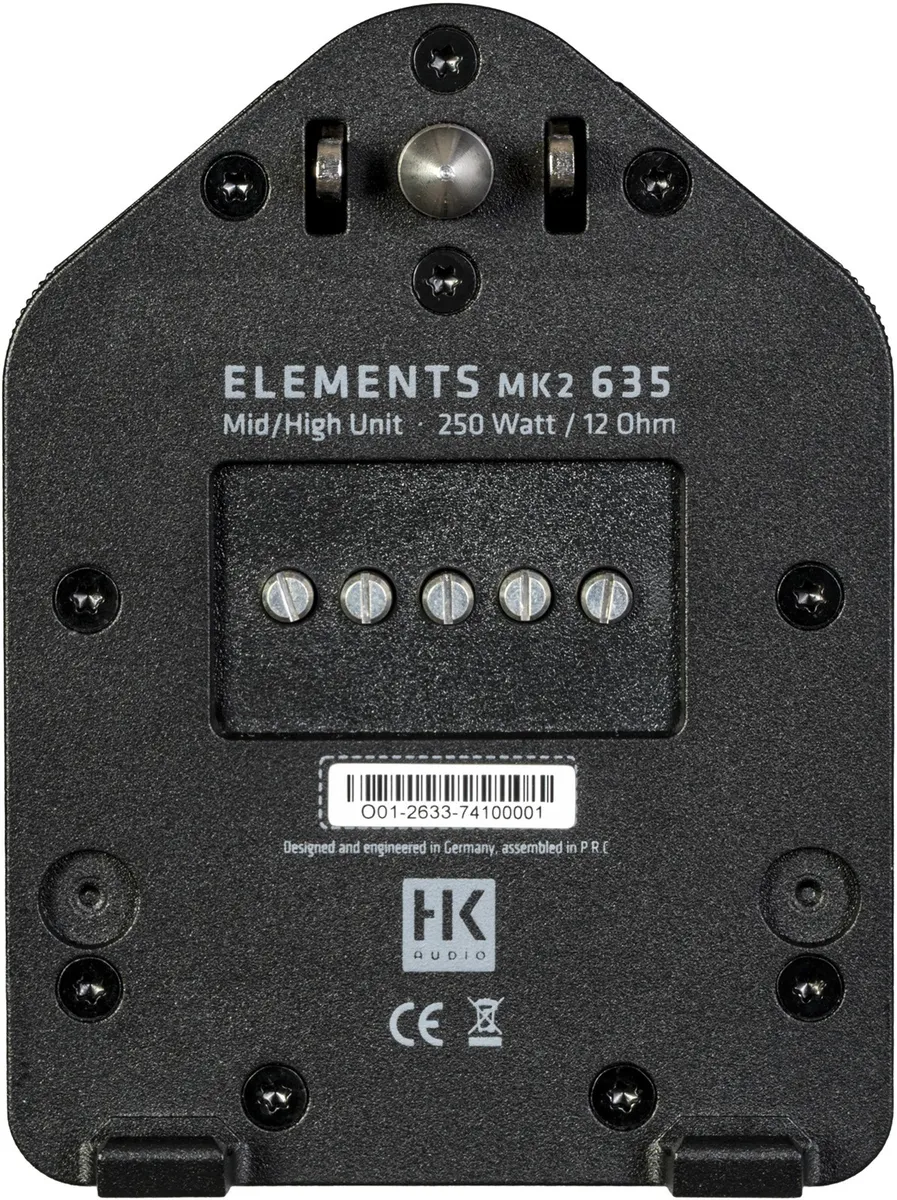

• Input: 1 x E-Connect MK2
• Parallel output: 1 x E-Connect MK2
• Enclosure: aluminium with Black powder-coated finish

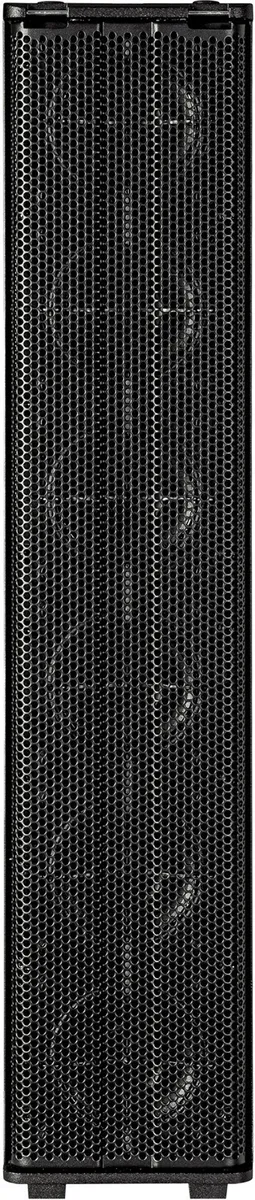

• Grille: steel with anti-corrosion treatment
• Dimensions: 11.2 x 56 x 15.1 cm
• Weight: 7.3 kg

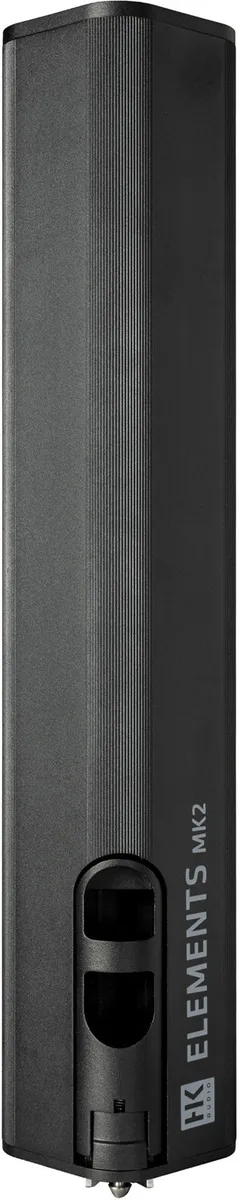

ELEMENTS MK2 SPACER spacer

• Input connectors: 1 x E-Connect
• Parallel output: 1 x E-Connect
• Enclosure: aluminium with Black powder-coated finish
• Dimensions: 11.2 x 56 x 15.1 cm
• Weight: 3.85 kg
