64 channel MADI I/O
64 channel MADI I/O
64 channel MADI I/O
64 channel MADI I/O


64 channel MADI I/O

Artno: 496858

32 949 kr. (inkl. moms)



64x64 MADI I/O With Dual PSUs.

RedNet D64R is a 1U, 64x64 MADI interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet D64R is the ideal choice for providing MADI I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.

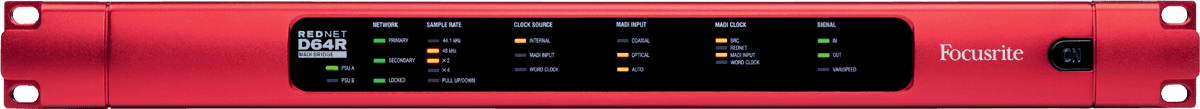

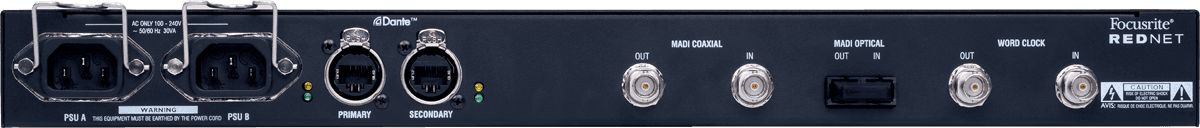

MADI connectivity is provided in the form of coax through two rear-panel BNC connectors, as well as optical through an SC-Duplex connector. Word Clock I/O allows RedNet D64R to provide clock to external equipment, or alternatively to sync the Dante network to an external clock. The word clock input can additionally be used as the sync source for the unit's sample rate converters, allowing asynchronous operation between the network and the MADI domains. Front panel status LEDs provide visual feedback of signal presence, SRC status, PSU status and more.

- Compatibility : PC, Mac

- Dimensions (mm) : 482 x 308 x 45

- Number of inputs : 64

- Power supply : Sector

- Provided software : Dante Controller, Dante Virtual Soundcard, RedNet Control

- Weight (kg) : 3,74 kg

- Worldclock : Yes
