The L7 effectively maximizes sound pressure level thanks to high-performance loudspeakers, drivers and muscular 2000 watts Pascal Class-D amplifiers and delivers ultra-precise coverage of frequency spectrum thanks to minimized distortion and optimized directivity. Includes a state-of-the-art DSP platform with integrated fully parametric 10-band EQ, delay and limiting for uncompromised individual configuration that offers the latest networking technology to control Theo DSP of every LINEAR 7 cabinet from that one central FOH spot.
Additional DSP-Out that lets you integrate an added non-network-compatible powered cabinet (such as your LINEAR series active subwoofers) into the network and remotely control it with all the parameters of the LINEAR 7 DSP that´s easy to control with the direct access to easy selectable presets for use as full range cabinet or in a system, even in a non-network setup. The futureproof Audio-Streaming (Certification for MILAN is in the works) operates in high resolution 96 kHz AD/DA converters, FIR-filtering and low latency.
L7 provides a full range housing for maximum bass output and a user friendly rigging and mounting option.
• Peak Power: 2.000 watts
• Power Amp: Class-D, Bi-Amped
• Woofer: 12" (2.5" voice coil)
• Tweeter: 1" (1.75" Voice Coil)
• Horn: 70° x 50° CD, rotatable
• X-over: ca. 1.8 kHz, FIR
• Analog inputs: XLR / ¼“ Jack
• Analog Thru: XLR
• DSP Out: XLR
• Network connectors: 2x Ethercon
• DAN-Protocol (Audio-Streaming): Milan (Certification in progress)
• DSP-functions fully parametric 10-band EQ with variable filter-characteristics, high pass filter, low pass filter, polarity, level, delay, limiter
• Operating system for remote software: Windows, Mac OS (app for iPad will follow)
• Sampling-Rate: 96 kHz
• Latency: 2.6 ms
• Mains input: Powercon
• Power supply automatic switching power supply (100 to 240 volts)
• Rigging points: 3 x M8 for use with AP-8
• Rigging frame : TB + TA-45NQ
• Clustering angle: 35°

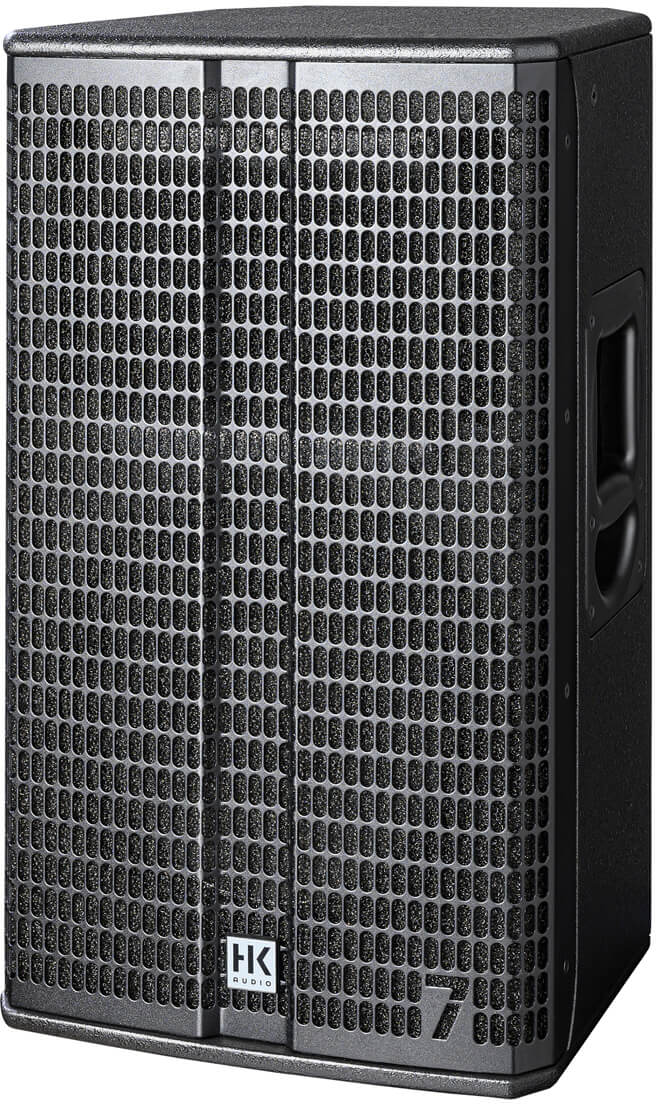

• Front grille: 2 mm powder coated metal grille, black acoustic foam
• Housing: 15 mm birch multiplex / MDF-hybrid
• Finish : Environment-friendly Warnex acrylic enamel

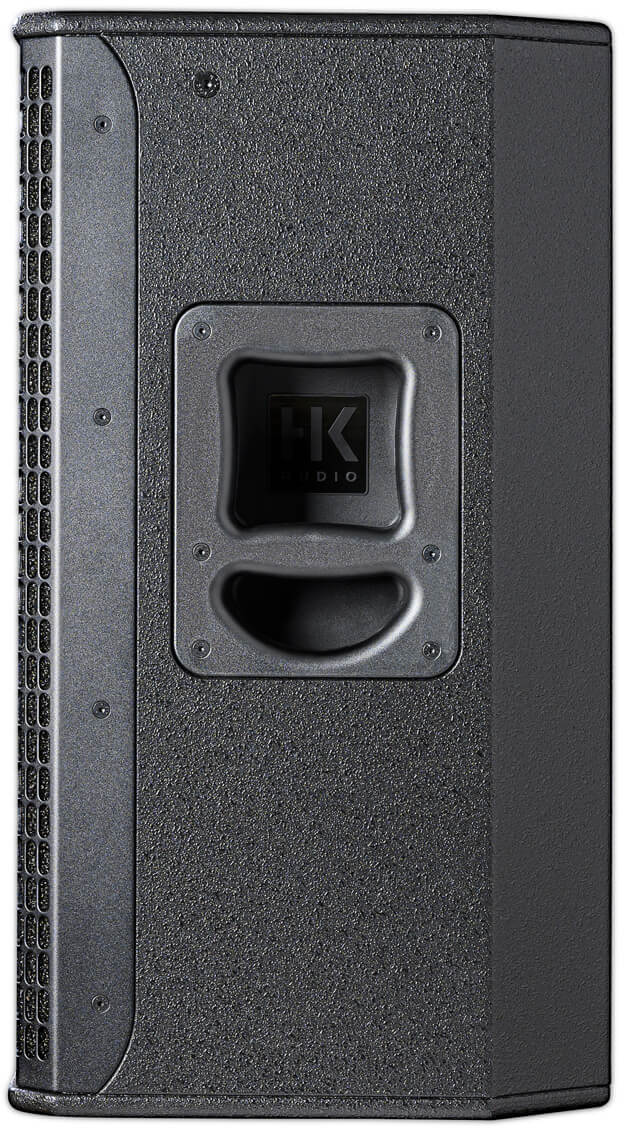

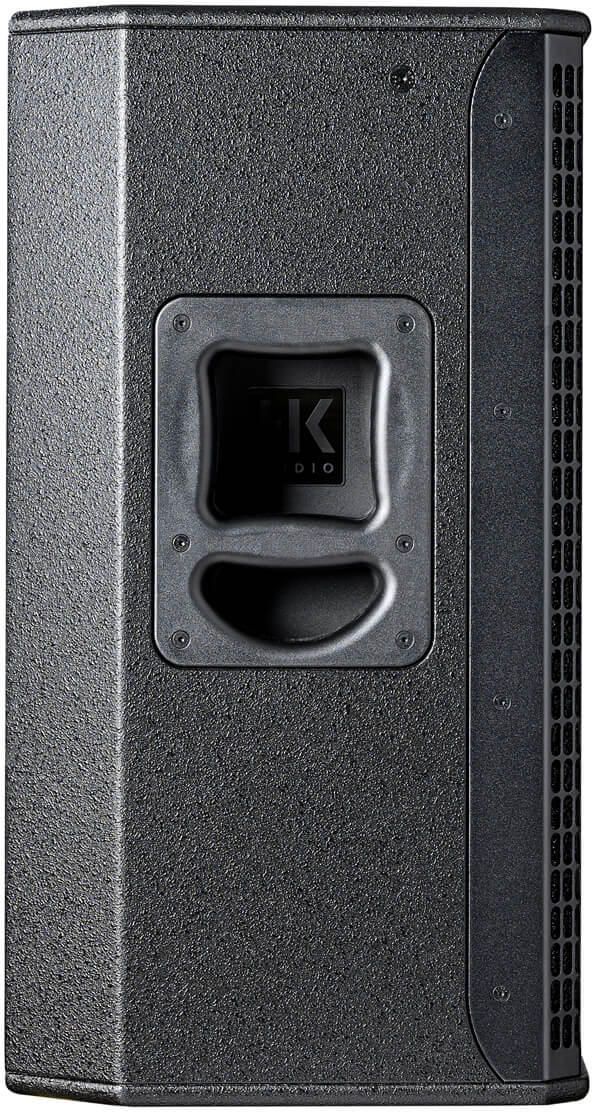

• Handles: 2x MultiGrip

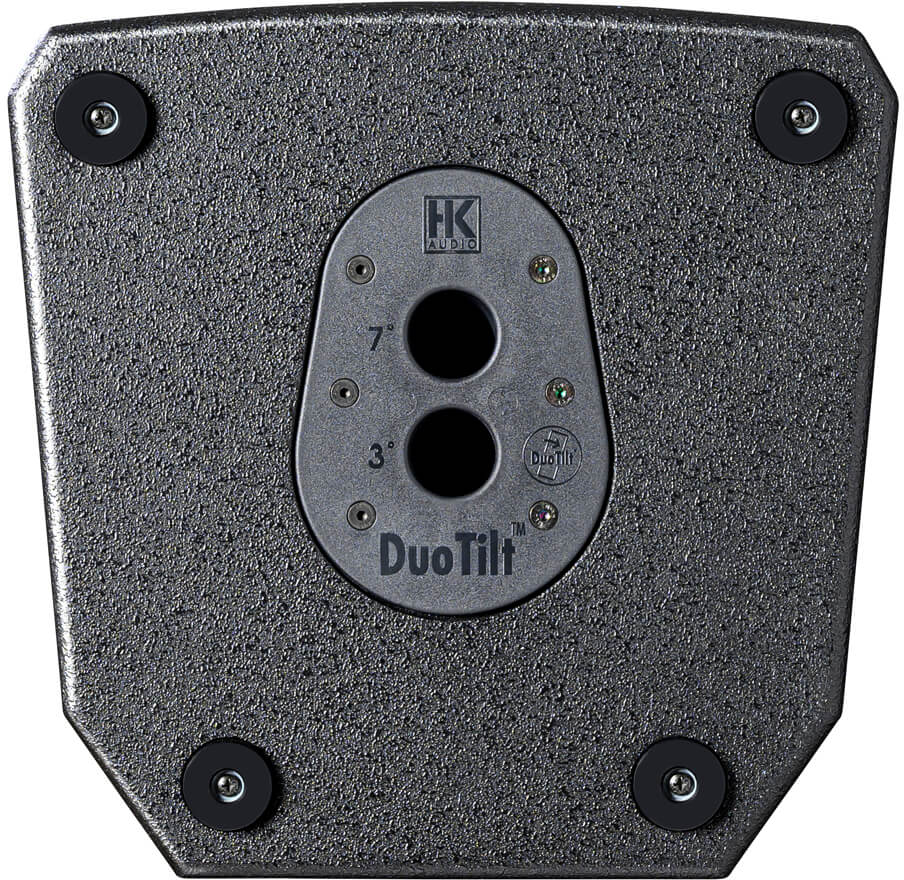

• Pole mount: Duo Tilt (3° / 7°)
• Dimensions: 37 x 67 x 36.5 cm
• Weight: ca. 24 kg
