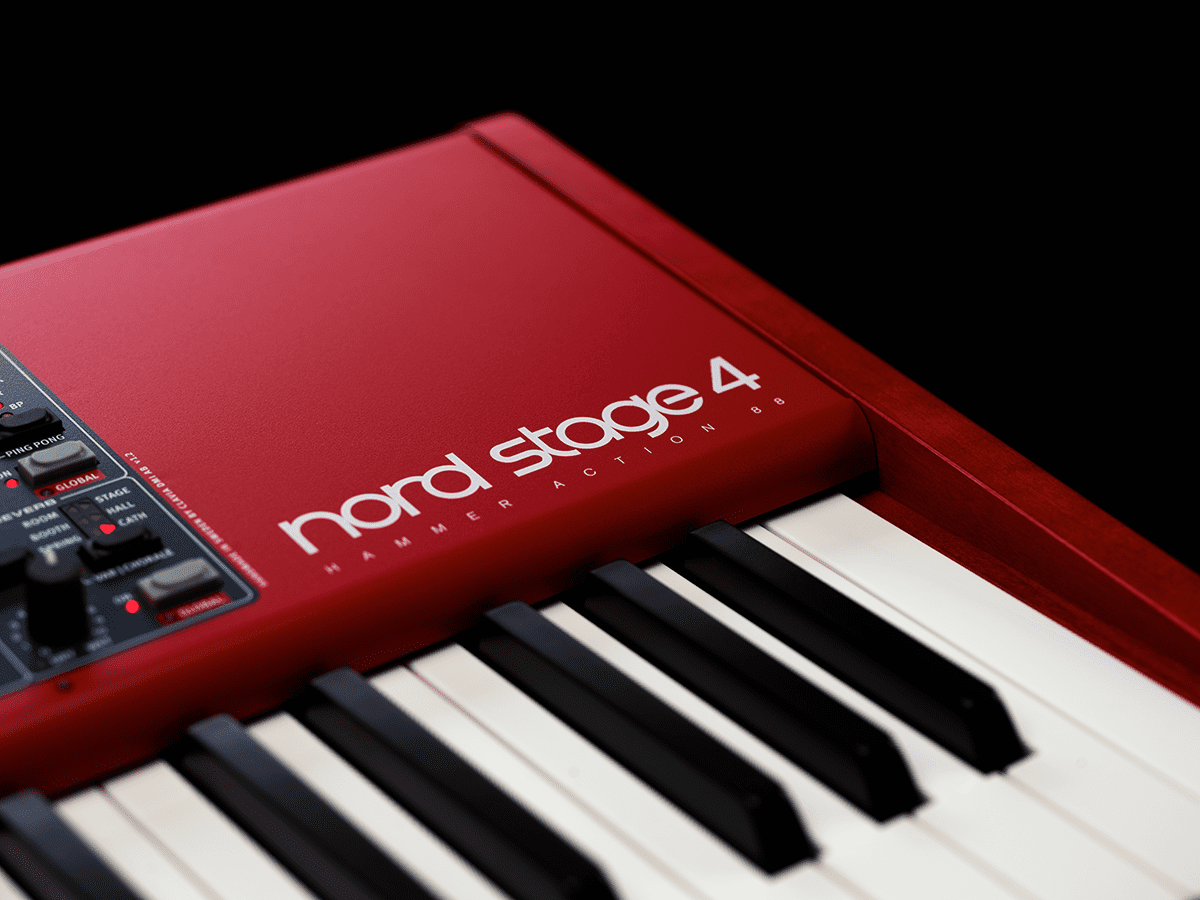

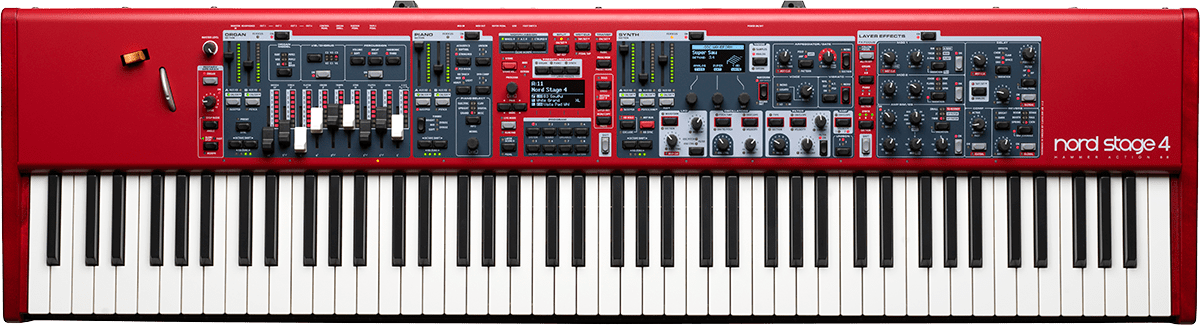

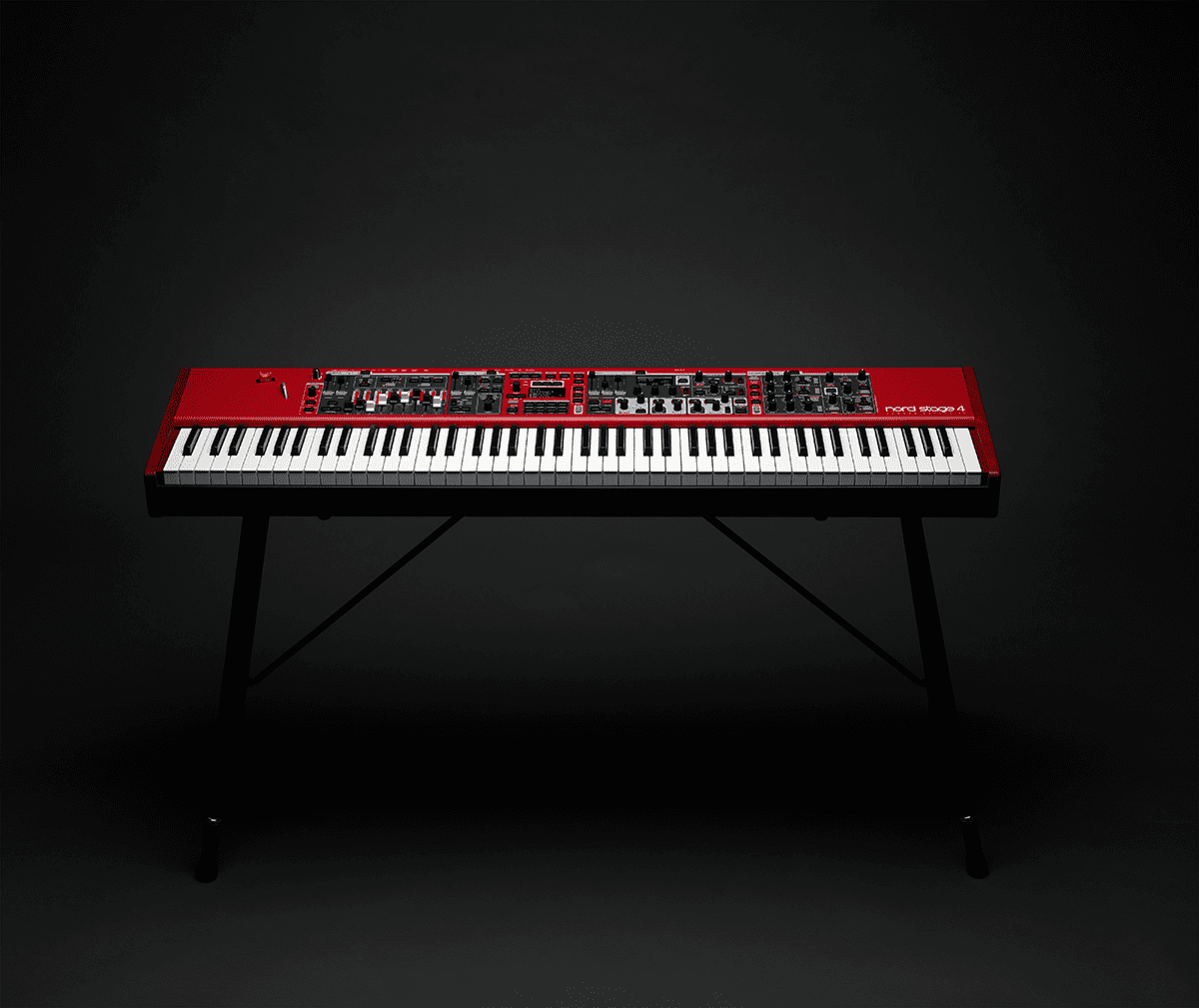

Nord Stage 4 88 med fuldvægtede Triple Sensor tangenter (A-C), aftertouch og fysiske drawbars med LED indikatorer.
NORD STAGE 4
Ny generation af den ikoniske flagskib-serie.
Med et intuitivt nydesignet panel, premium Triple Sensor tangenter, komplette effektsektioner for hver af de fire Layers og heftige optimeringer af Nord’s prisvindende teknologier, sætter Nord Stage 4 en helt ny standard.
DEN NYE OPLEVELSE

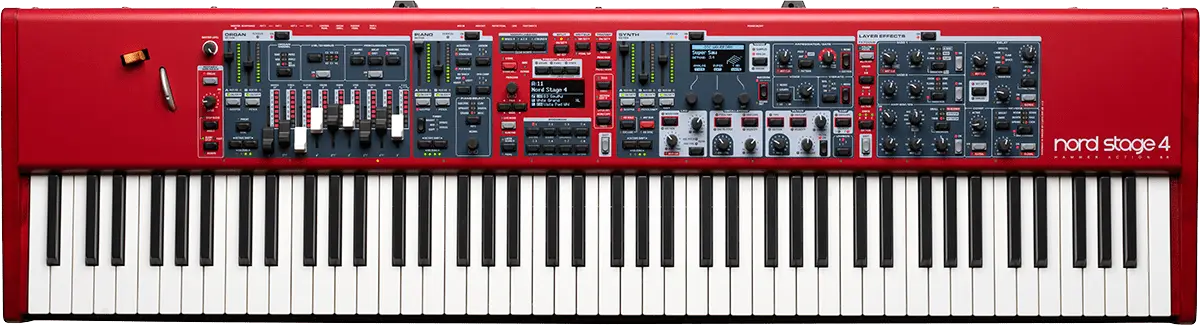

Nord Stage 4 kommer med et helt nydesignet panel med dedikerede LED faders for hvert Layer, som giver exceptionelt overblik og fleksibilitet når der skal laves lyde eller under en liveoptræden. Det nye lydbibliotek er spækket med inspirerende Piano-, Synth- og orgel-lyde.
Layer-funktionen giver dig mulighed for et glidende skifte mellem to forskellige lydopsætninger med ét enkelt tryk. Lig hertil en særdeles kraftfuld effektsektion, alsidige pedalfunktioner og de bedste Triple Sensor tangenter, Nord Stage 4 tilbyder et helt nyt niveau og muligheder for musikalsk udtryk.

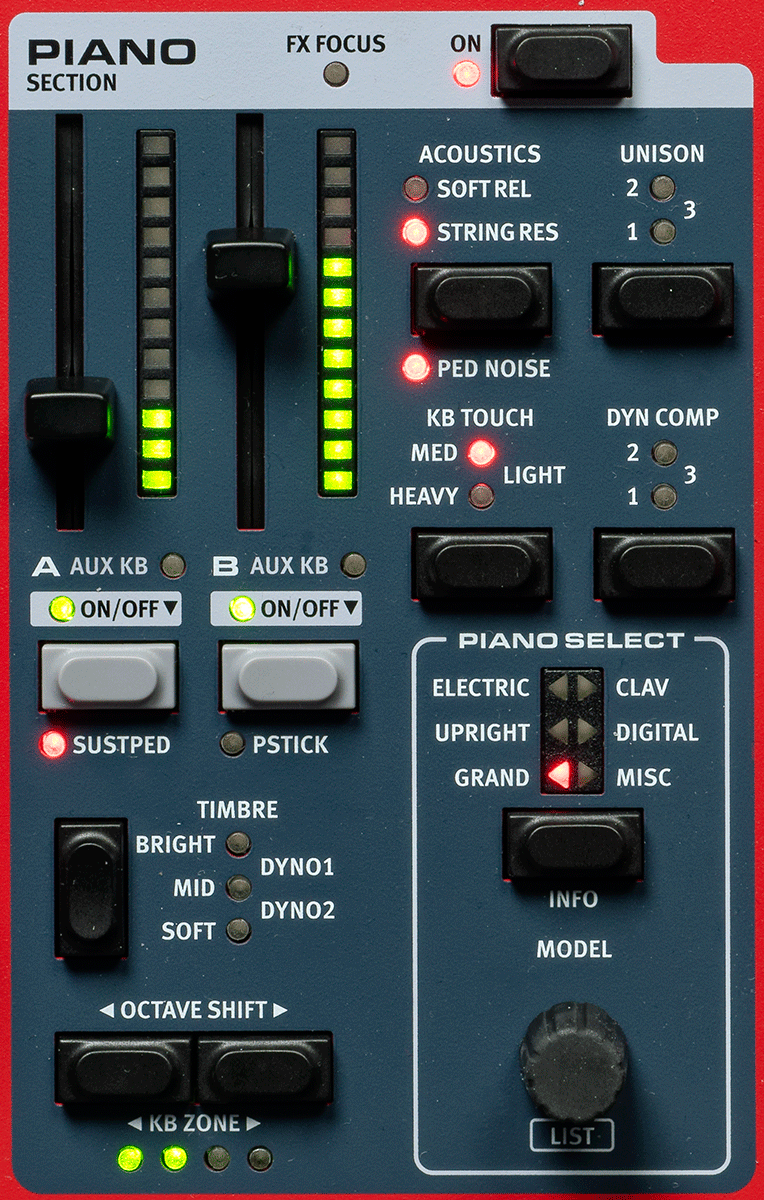

PIANO
Nord Stage 4 kommer med en ny forbedret samling af Grands, Uprights og Electric Pianos fra Nord’s eksklusive Nord Piano Library kombineret med nye funktioner som f.eks. Dynamic compression og Unison.
· Forbedret samling af Uprights, Grands, EPs og meget mere
· Dynamic Compression
· Unison funktion
· Creative Timbre presets

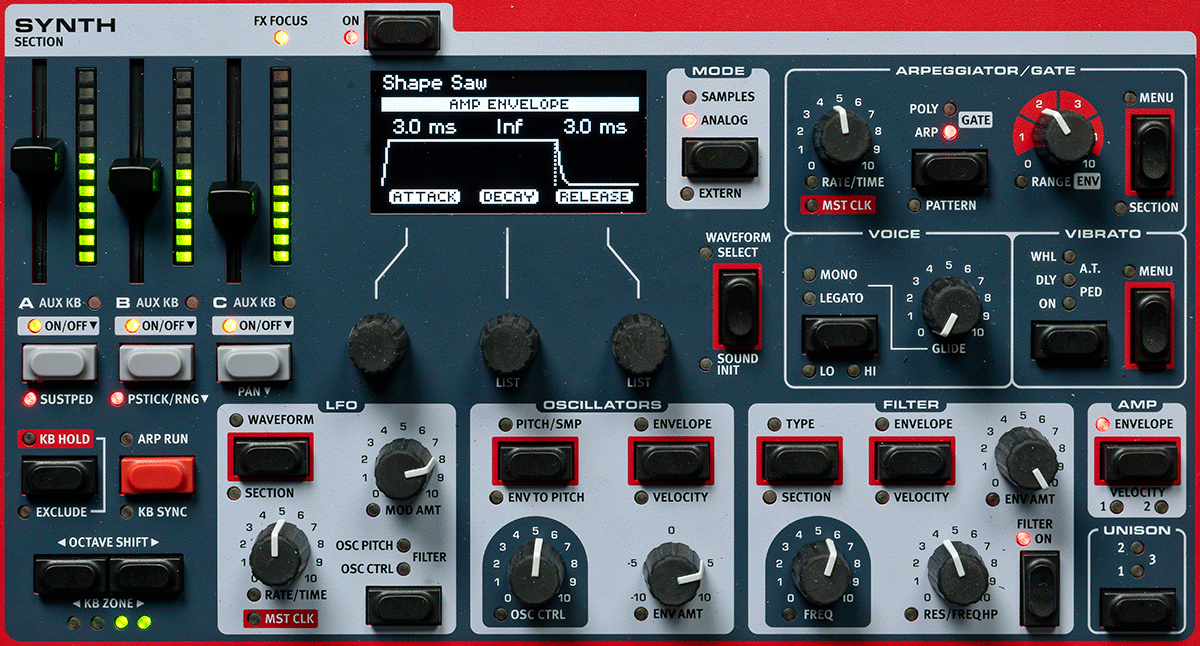

SYNTH
Synth-sektionen med sine tre individuelle Layers er baseret på den kraftfulde Nord Wave 2 Synth motor, bl.a. inkluderende Virtual Analog synthesis, Samples, FM og Digital Waves. En fremragende ny samling med samples fra Nord Sample Library, giver en bred vifte af samples med alt fra Strings, Bass, Choirs, guitarer og meget mere. Den avancerede Arpeggiator kommer med nye modes; Polyphonic, Gate og Pattern, og kan bruges til uendeligt mange variationer af rytmiske applikationer med programmerbare mønstre.
· Nord Wave 2 Synth motor
· 3 individuelle Synth Layers
· Dobbelt sample-hukommelse.
· Forbedrede samples med Tru-Vibrato, Unison og Round Robin
· Uovertruffen real-time kontroller
· Avanceret Arpeggiator med Polyphonic, Gate og Pattern modes
· Ekstern-mode til avanceret MIDI kontrol

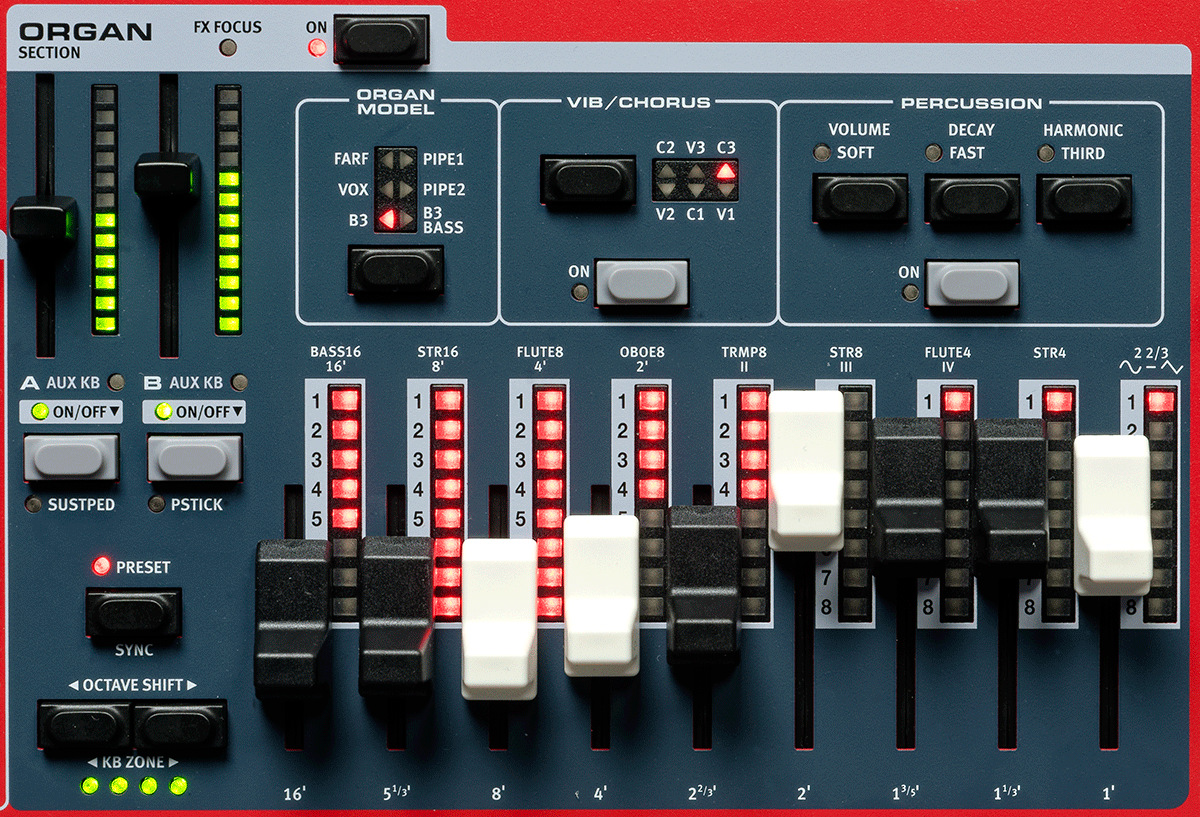

ORGAN
Orgelsektionen indeholder bl.a. de prisvindende simulationer af B3 Tonewheel, B3 Bass, Classic Vox og Farfisa så vel som to pibeorgelmodeller. Alle Stage 4-modeller er udstyret med de nye fysiske drawbars med LED indikatorer, som giver dig optimal hands-on oplevelse og overblik.
· Prisvindende orgelsimulationer af B3, Vox/Farfisa og pibeorgelmodeller
· Fysiske drawbars med LED indikatorer
· Ny B3 Bass mode
· Drawbar Live mode
· Model 122 Vintage Rotary Speaker med normal eller ‘close mic’ positions

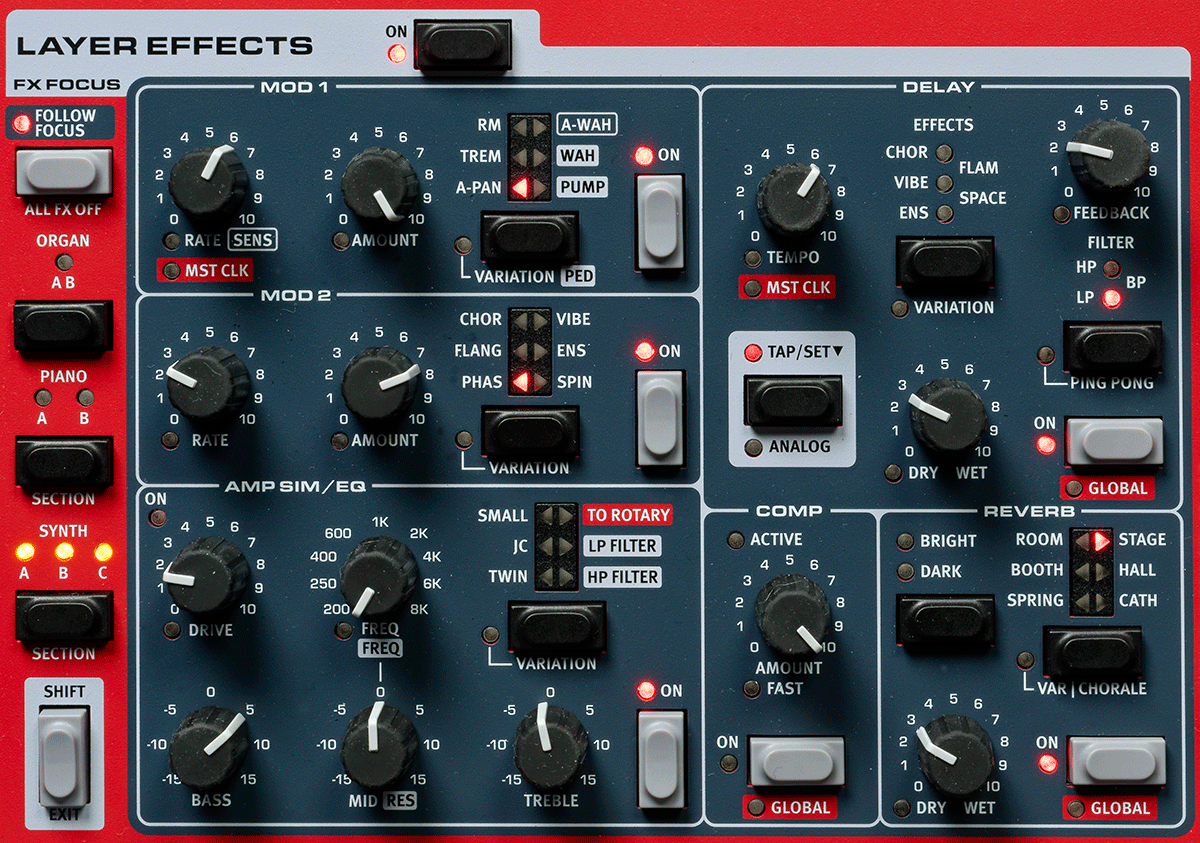

EFFECTS
Nord Stage 4 har en kraftfuld effektsektion der giver dig et komplet effekt-setup for hvert Layer. Den imponerende samling af effekter inkluderer bl.a. en ny ’Pump’ effekt for tempo synk eller pedalstyret side-chain modulation, en ny ’Spin’ effekt og helt nye variationer af Reverb, Delay, Amps og modulationseffekter.
· Dedikeret effektsektion for hver Layer
· Nye variationer af Modulation, Amp, Delay og Reverb effekter
· Nye Spring, Booth og Cathedral Reverb
· Ny Pump effekt
· Ny Spin effekt
· Nye Flam og Space Delay

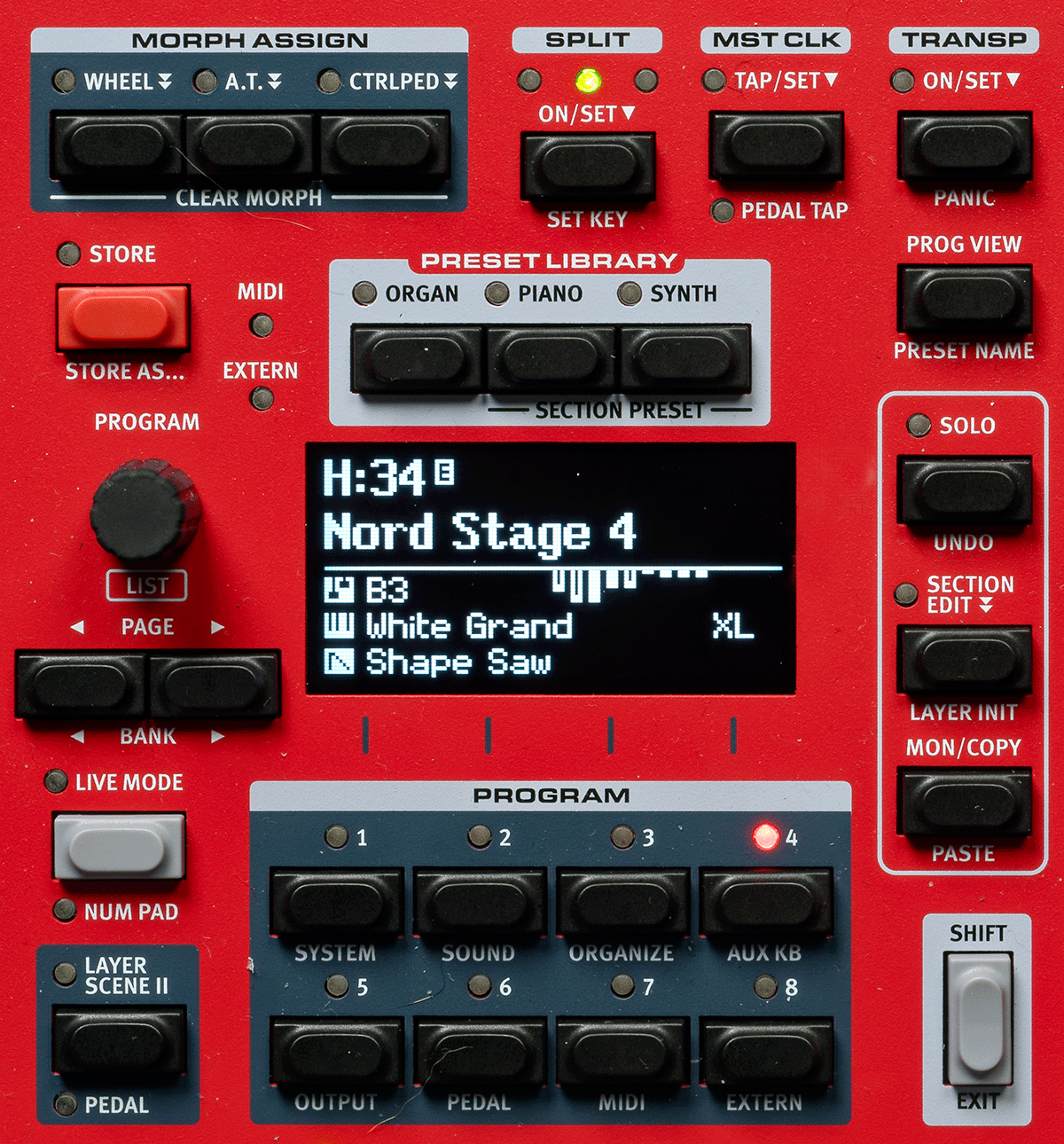

GENERAL
Master Level Control
Wooden Pitch Stick
Modulation Wheel
512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations
Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations.
8 Live Programs
2 Individual Layer Scene Setups
3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch
Stereo and Mono output routing options
Programmable Transpose +/- 6 semitones
Master Clock functionality with manual, external and tap-tempo rate control
Internal and MIDI clock source
MIDI over USB functionality
Level control
Aftertouch
Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
3 Split Point width (crossfade) options: Lrg, Sml or Off
ORGAN SECTION
Nord C2D B3 Tone wheel Organ simulation
Vox Continental and Farfisa models
2 Digital Pipe Organ models
B3 Bass mode
Physical Drawbars with LED graphs
Preset or Drawbar Live mode
Percussion controls
Vibrato / Chorus control
2 Layers (2-Part Multitimbral)

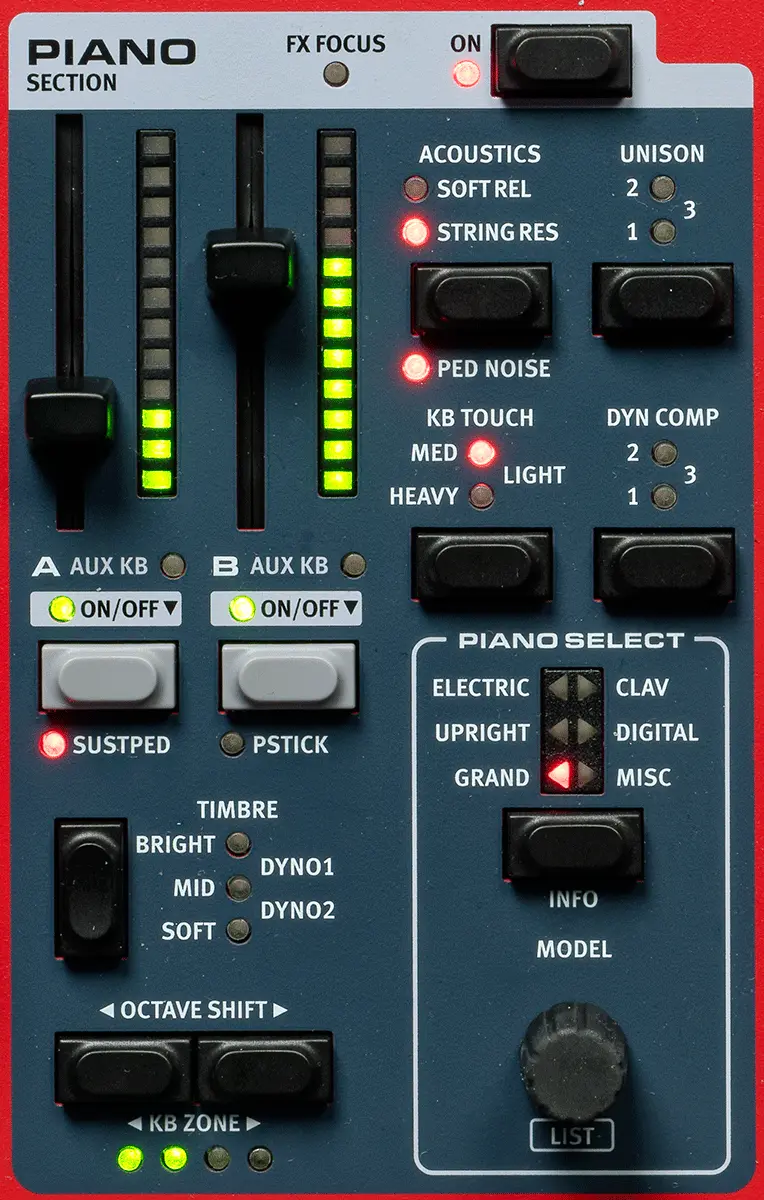

PIANO SECTION
2 GB memory for Piano sounds
All sounds can be replaced using Nord Sound Manager (Mac/Win)
120 Voice Polyphony
Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)
Piano Timbre controls with custom settings for Electric Pianos and Clavinet
String Resonance for acoustic Grand Pianos and Uprights
Selectable Soft Piano Release
Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos
Dynamic Compression
Unison functionality
2 Layers (2-Part Multitimbral)
SYNTH SECTION
Nord Wave 2 Synth Engine with Sample Playback
Dedicated OLED Display for Waveform/Sample selection and parameter editing
1 GB Memory for Nord Sample Library
All samples can be replaced using Nord Sound Manager (Mac/Win)
46 Voice polyphony
Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample
Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)
Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
Filter Drive: Off, 1, 2 and 3
Filter Tracking: Off, 1/3, 2/3 and Full
3 Unison modes
Vibrato modes controllable from Mod Wheel, Aftertouch and pedal.
Filter envelope (Attack, Decay, Sustain) with Velocity control
Amplitude envelope (Attack, Decay, Sustain) with Velocity control
Oscillator envelope (Attack, Decay, Sustain) with Velocity control
LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
Advanced Arpeggiator with Arp, Polyphonic and Gate modes
Arpeggiator Patterns for all modes, with Accent and Pan options
LFO and Arpeggiator synchronizable to Master Clock
3 Layers (3-Part Multitimbral)
EFFECTS
Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect
Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect
Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode.
3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model
Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
Tube amp simulation with adjustable overdrive
3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
Effect rates/tempo can be synchronized to the Master Clock
Compressor with Fast Mode
Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options
KEYBOARD
Nord Stage 4 88: 88-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: A-C
Nord Stage 4 73: 73-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: E-E
Nord Stage 4 Compact: 73-key Triple Sensor Semi Weighted Waterfall keyboard with Aftertouch. Range: E-E

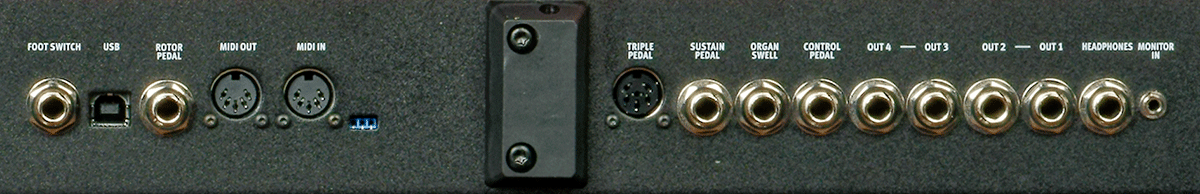

CONNECTIONS
4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
Stereo Headphone output - ¼", 6,35 mm stereo jack
1 Monitor input - 1/8", 3,5 mm stereo jack
Sustain Pedal - ¼", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
Triple Pedal - 5 pin DIN connector. Compatible with Nord Triple Pedal 2
Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal.
Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack.
Control Pedal - ¼", 6,35 mm TRS stereo jack.
Foot Switch input - ¼", 6,35 mm jack. Use a momentary two-button pedal or a single switch type pedal.
MIDI In - 5 pin DIN connectors
MIDI Out - 5 pin DIN connectors
USB - type B connector for USB MIDI, Software Update and Sound Transfer
Power Cord with IEC C14 connector
Nord Stage 2 Connections
INCLUDED ACCESSORIES
User Manual
Power cord
USB cord
OPTIONAL ACCESSORIES
Nord Triple Pedal 2
Nord Single Pedal 2
Nord Sustain Pedal 1
Nord Triple Pedal 1
Nord Piano Monitor
Nord Keyboard Stand EX
Nord Soft Case
Nord Music Stand EX
Nord Half-Moon Switch (for Compact model)
Dust Cover
DIMENSIONS
Nord Stage 4 88: 1282 mm (50.5"), 121 mm (4.7"), 349 mm (13.7")
Nord Stage 4 73: 1069 mm (42"), 121 mm (4.7"), 349 mm (13.7")
Nord Stage 4 Compact: 1066 mm (42"), 104 mm (4,1"), 322 mm (12.7")
WEIGHT
Nord Stage 4 88: 19.6 kg (43.2 lb)
Nord Stage 4 73: 16.7 kg (36.8 lb)
Nord Stage 4 Compact: 10.4 kg (22.9 lb)
Specifications subject to change without notice. *Steinway, Wurlitzer, Hohner, Clavinet, Farfisa and Vox are trademarks of their respective owners and are not affiliated or associated with Clavia. These trademarks are mentioned here as a reference to a sound only. Leslie is mentioned to describe a connector standard.
