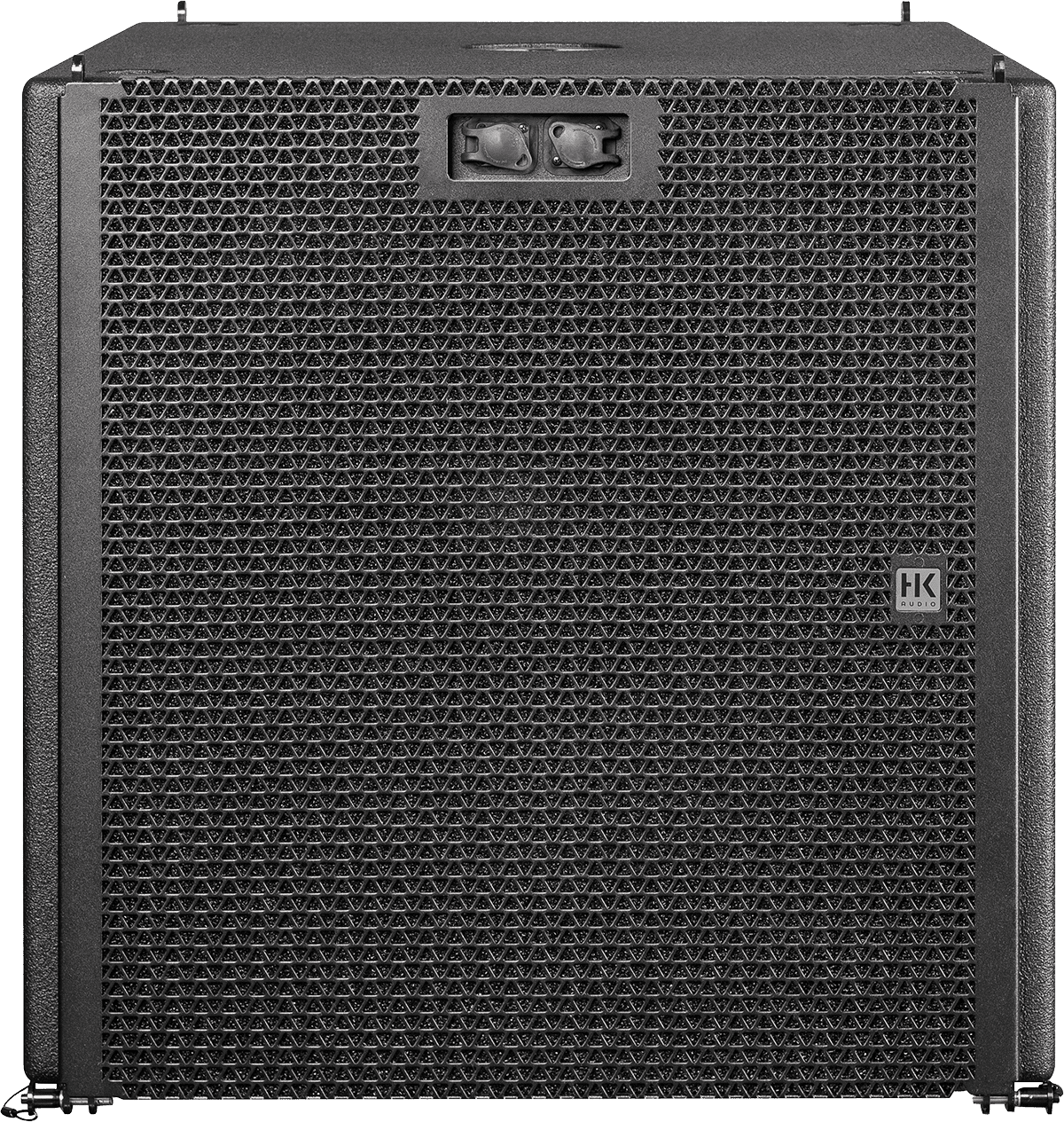

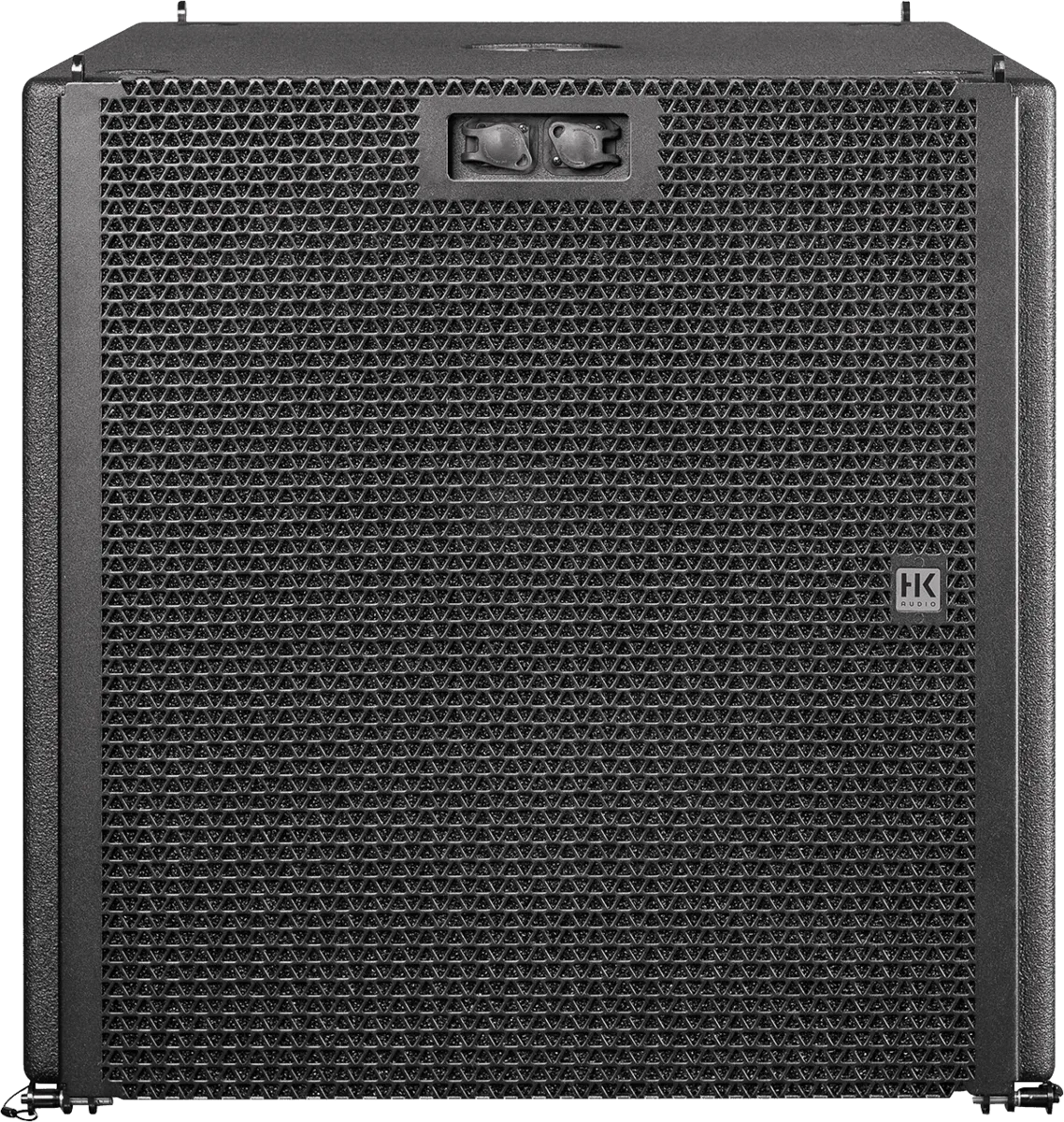

The compact, direct-radiating, high-performance 1×18" subwoofer with COSMO's modular dimensions of 60 cm is the flyable version of the CS 118 subwoofer. Its high efficiency and extremely high power handling capacity provide an extraordinarily large dynamic headroom down to the lowest frequencies. It is ideal for all applications where there is no room for placing bass enclosures and is also suitable for ground-stack setups with COSMO or CONTOUR X components. Compared to other subwoofers in its power range, there are considerably fewer components covering the full spectrum of what users need and expect from an Fo system. This extends the operating periods of each component compared to other system families. For the CF 118 we provide ready-to- use filter sets for Lab.Gruppen PLM+ or Powersoft X power amplifiers. Optimised filter settings make it possible to quickly set up Cardioid or Endfire arrangements, among others. The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The simple handling results in enormous time savings, as well as reduced training requirements. An existing system can be expanded precisely as needed, all of which means an even more effective investment protection than usual is ensured. The expansion in small steps creates a much lower investment requirement.
Power-handling 1600 W nominal (RMS)
Power-handling, 3200 W program
Power-handling, 6400 W peak
Nominal 8 ohms impedance
Max SPL @ 10 % 129 dB (E DIN EN 60268-
THD 21:2018-04)
Max SPL 135 dB calculated
93 dB (30 Hz - 100 Hz), full
Sensitivity 1W/1m space
Frequency 35,5 Hz 100 Hz response +/- 3 dB
Frequency 31 Hz - 100 Hz response -10 dB
1x 18" Beyma neodymium LF Speaker with 4" voice coil
Connections 4x Speakon NL4
Pole mount 1x M20
Rigging points 4-point rigging hardware
Handles 4x HK Audio MultiGrip
Enclosure birch multiplex steel front grill with
Grille anticorrosive coating, acoustic foam
Finish PU coating
Optional cover, caster board accessories
Dimensions
60 × 63,3 x 78,3 cm (WxHxD)
