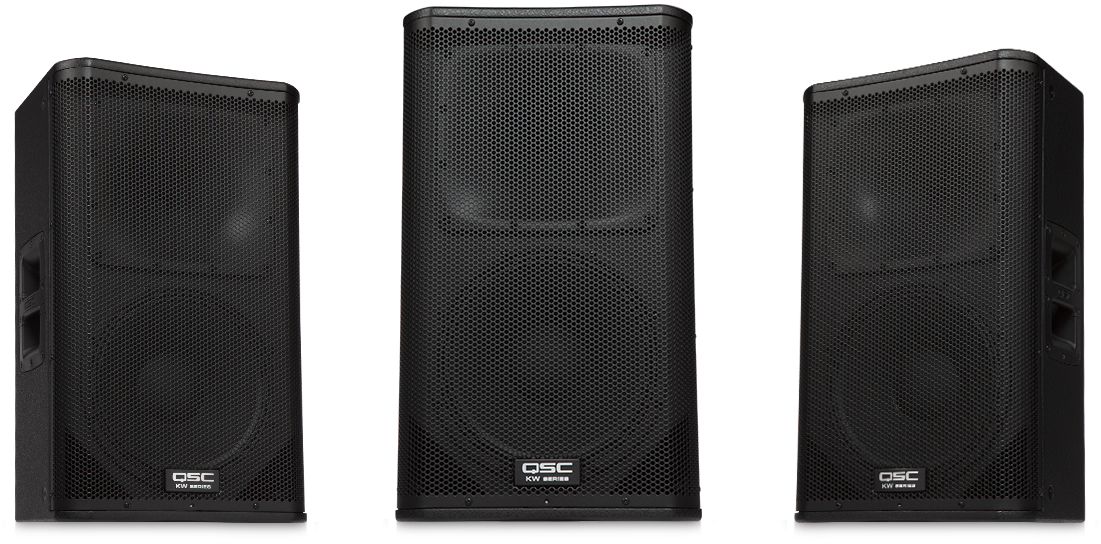

Building on the success of the K Series, the KW Series represents the next evolutionary step in wood enclosure loudspeakers. QSC system engineers have created the KW Series to feature all the groundbreaking electronic attributes of their popular K Series while at the same time designing a product that is both smaller and significantly lighter than previous wood enclosure models.
12-inch Woofer: 1.75-inch diaphragm compression driver
75° conical DMT™ coverage
Maximum SPL 131 dB peak

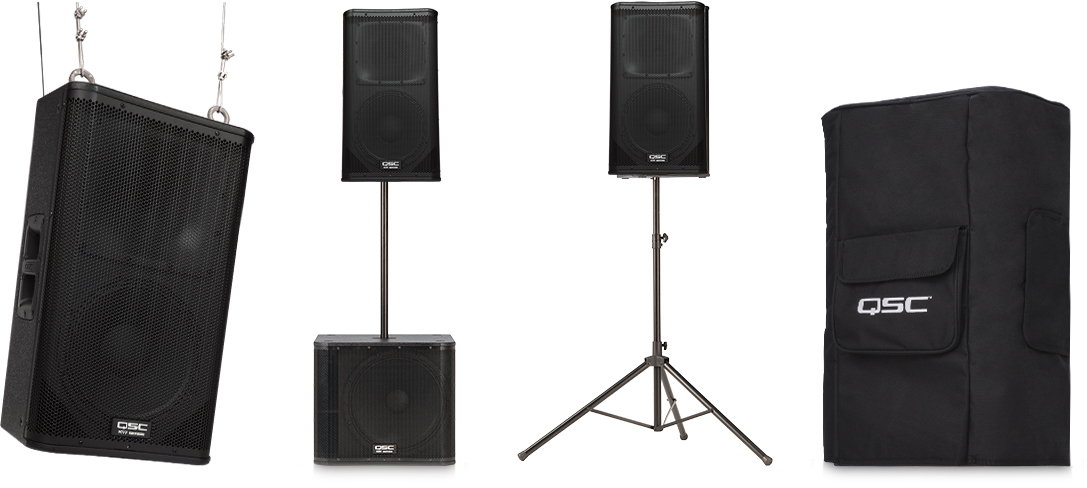

Also functions as monitor floor wedge
1000-watt Class D power modules in all models (2 × 500 W continuous)

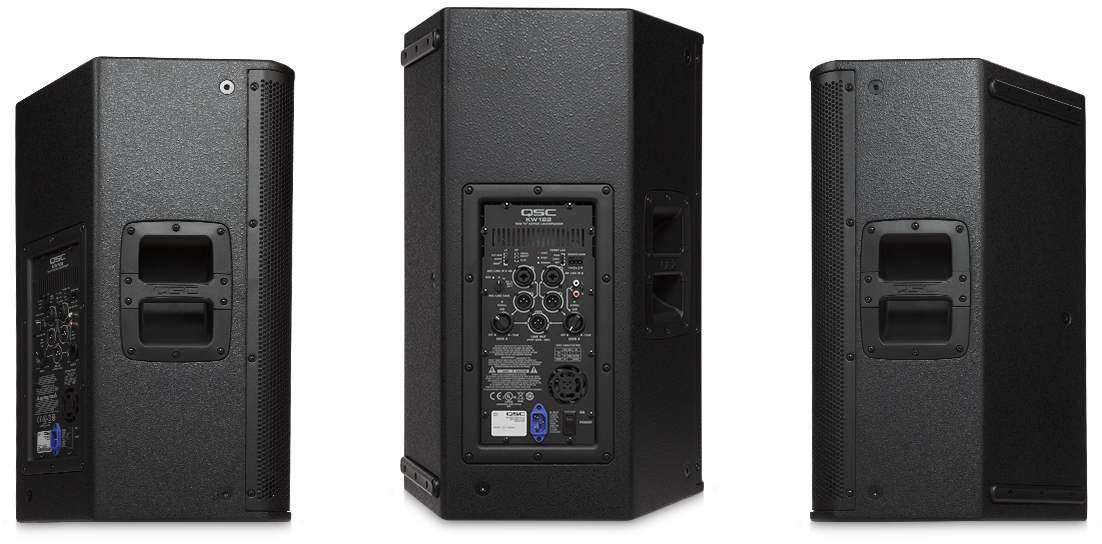

Onboard mixer with two combo XLR and ¼⁻ᶦⁿᶜʰ inputs, and stereo RCA inputs, (three audio input sources): two direct channel outputs and single summed balanced output
Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
Directivity Matched Transition® (DMT) ensures uniform coverage across the entire sound field
Rugged, texture-painted birch enclosures
Four-position Mic/Line gain (full-range models)
Tour-grade 16gauge steel grilles
Comfortable ergonomic handles
35 mm pole sockets with Tilt-Direct™
M10 rigging points for suspended installation
